- 2010-2018 (3UR-FBE) Toyota Tundra Flex Fuel 5.7L V8
- Also available as a "Tuner Kit" without calibration for other 3UR-FE 5.7L V8 Flex Fuel platforms, please inquire within
- 3UR-FBE - 2010-2019 Toyota Land Cruiser 5.7L V8 Flex Fuel (requires custom work for installation kit, and custom calibration)
- 3UR-FBE - 2010-2019 Lexus LX570 5.7L V8 Flex Fuel (requires custom work for installation kit, and custom calibration)
* PREMIUM 91 OCTANE GASOLINE FUEL REQUIRED. DO NOT USE E85 FUEL ONCE THE SUPERCHARGER KIT HAS BEEN INSTALLED . THE USE OF E85 FUEL WILL RESULT IN ENGINE DAMAGE OR FAILURE

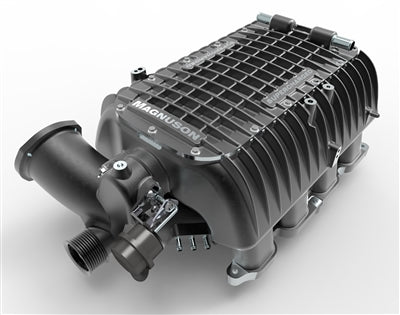

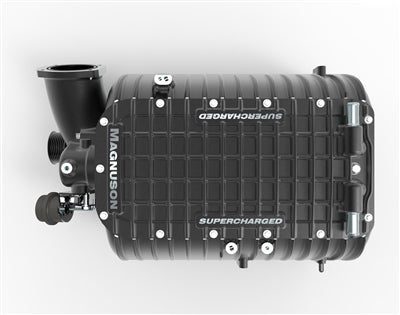

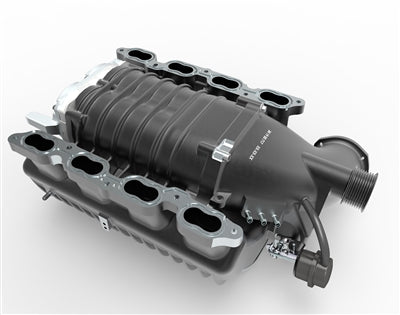

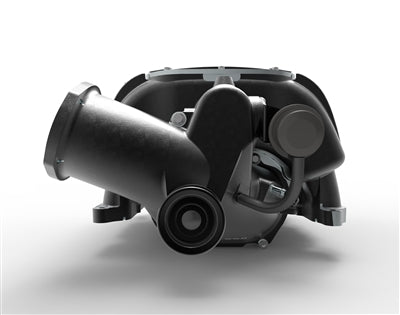

Magnuson Toyota Tundra 5.7L V8 Flex Fuel TVS1900 Supercharger System
Magnuson's Toyota Tundra Supercharger System is designed specifically for the 2010-2018 Toyota Tundra 5.7L V8 Flex Fuel engine. The OEM look of our integral supercharger system on this platform allows for a single large charger air cooler, a larger plenum and tapered runners just to name a few advancements. At around 7 psi, the Tundra Supercharger System makes an amazing 550hp and 550lb-ft of serious truck torque at the crank.
The addition of the Supercharger System to the Flex Fuel vehicle requires changes to the fuel system to convert the engine to run on Premium gasoline only for maximum performance. Modifications include upgraded fuel injectors and pump and a specific calibration. Once these changes are made, the vehicle will no longer run on E85 fuel.
At the heart of the Magnuson Supercharger System is Eaton’s latest Twin Vortices Series (TVS) supercharger unit, the TVS1900. The supercharger system is a positive displacement, roots style pump, utilizing Eaton’s lightweight, four-lobe 160 degree twisted rotors. Cast and assembled as a single, OEM-style-manifold and rotating group housing, the unit is quiet, compact, attractive, easy to install, and requires little to no extra maintenance to the unit itself.
The positive displacement supercharger offers power instantly as the throttle is pressed. Boost pressure builds with no perceived lag commonly associated with other types of forced induction, and provides a large increase in torque across the entire power band. Throttle control is linear and predictable and makes for an excellent driving experience both in daily driving and wide-open acceleration.
Since the supercharger does not compress air as it moves through the rotors, it’s extremely efficient during light throttle and cruising situations. Unlike screw-type positive displacement superchargers that are always compressing, the TVS unit can internally bypass unwanted air, resulting in negligible parasitic loss during cruising and therefore far greater fuel economy.
The single cast unit and appropriately sized rotating group eliminates potential leak points and allows for a slim, compact design without sacrificing key airflow design characteristics. The unit features a high velocity flow path through the supercharger rotors and an unrestricted discharge port into the appropriately sized plenum. The large plenum equalizes flow across all ports as air feeds evenly through the low-pressure-drop, dual internal air-to-water charge air coolers. Finally, the ports are separated into individual runners, offering greater operation by eliminating cross-fire.
Internally the large charge air cooler features a louvered fin design, which minimizes pressure drop while achieving excellent cooling effectiveness. The extruded multi-rib tubing maximizes heat extraction to be carried away through the large bore coolant re-circulation lines. Externally, supercharger coolant is pumped through a large front mounted low temperature radiator where it’s cooled and circulated back through the charger again.

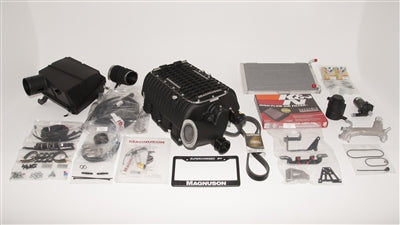

- 550hp & 550lbs-ft at the crank in standard kit form on an unmodified truck
- Calibration included for standard kit on stock truck
- CARB certification 2010-2017 (D-488-41) 2018 Pending
- Installs can usually be completed within one day
- Also available as a “Tuner kit”, please call for more information
PREMIUM 91 OCTANE GASOLINE FUEL REQUIRED - Do not use E85 fuel after installation of Supercharger
- See Warranty page for further information
- Eaton TVS1900 rotor group
- Kit produces 7-8 psi. in standard form on a showroom vehicle
- Designed to run on Premium Octane fuel only. System not compatible with E85 fuel!
- Installs without any metal cutting (no drilling, sawing etc.)
- Installs without any wiring being cut – all connections are plug-in
- O-rings on all interfaces (leak-free install)
- Unrestricted rotor discharge port (maximizes flow, minimizes loss)
- Large plenum (equalizes flow to all ports)
- Long port “runners” for improved fueling (minimizes cross-fire)
- Supercharger specific Spark Plugs
- Maintains all OE sensors
- High Flow Air Filter
- Injection molded Lower Air-box
- Injection molded Upper Air-box
- Injection molded intake Coupling
- Utilizes OE throttle body
