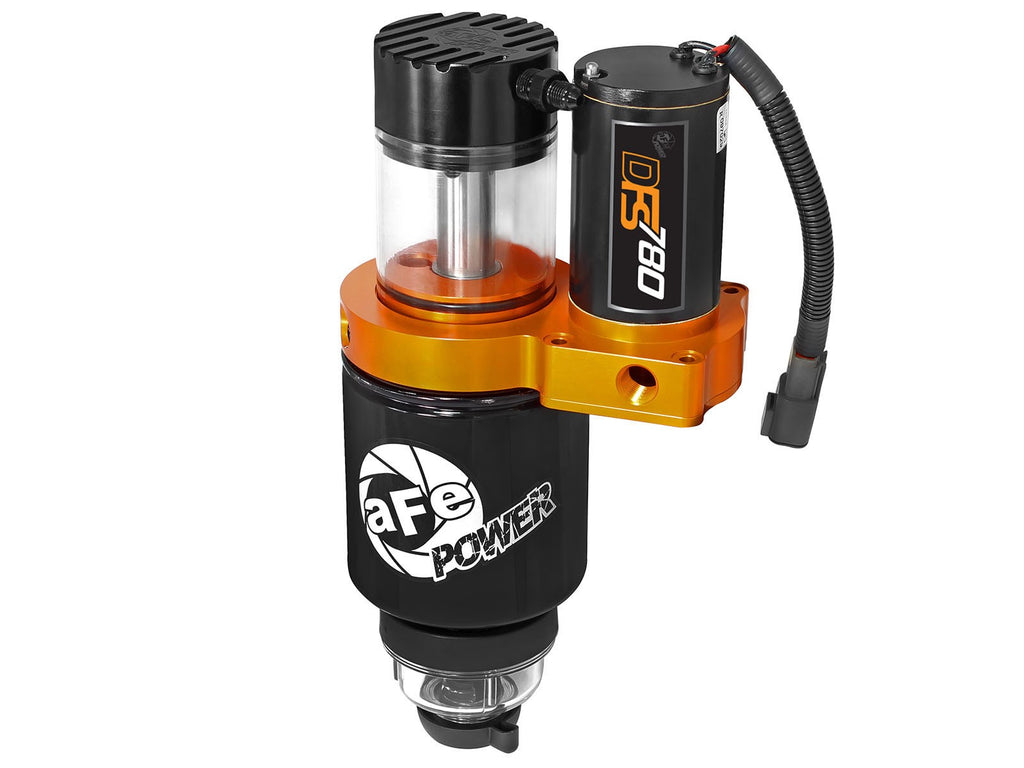

AFE: DFS780 Fuel System - Boost Activated Ford Diesel Trucks 99-03 V8-7.3L (td)

Vendor: aFe Power

SKU: 42-13012

$897.00 $1,121.25
Built-in Bypass For Stock Fuel System:Allows vehicle to run on stock fuel pump under light loads. Clear High-Impact Polycarbonate Sight Glass:Allows visual inspection of fuel. Helical Bronze Spur Gears:Bronze gears...
Title


Built-in Bypass For Stock Fuel System:
Allows vehicle to run on stock fuel pump under light loads.

Clear High-Impact Polycarbonate Sight Glass:
Allows visual inspection of fuel.

Helical Bronze Spur Gears:
Bronze gears more forgiving of contaminants than steel gears. The helical spur gear design runs quieter than straight cut gears.

Billet 6061-T6 Aluminum Manifold:
Eliminates porosity concerns with cast aluminum.

"Marine Grade" Motor:
Protected against dust intrusion and powerful water jets.

Plug & Play Installation:
Supplied harness attaches directly to battery and utilizes Deutsch weather-proof connectors. No cutting or modifications of the stock fuel lines required.  Vehicle can easily be returned to stock.

Boost Activated Pump Engagement:
Supplied preset boost switch activates pump only under load, reducing wear & tear on the DFS780 pump.

PEEK Bearing Wear Surfaces:
The DFS780 spur gears ride on PEEK (Polyether Ether Ketone) bearing surfaces to reduce both noise and wear.

Contoured CNC Machining Of Manifold Passages:
Enhances flow through the manifold to reduce pressure drop due to flow restrictions.

Direct Bolt-on Steel Mounting Bracket:
Heavy duty bracket mounts to the frame and utilizes existing hole to secure.

Fuel Pressure Gauge Port:
1/8 NPT port allows customer to attach an external pressure gauge to monitor fuel pressure.

O.E Quality Viton Seals:
Compatible with diesel and biodiesel fuels.

Emissions Disclaimer:
Some or all of the applications listed are 50-state exempt, please see CARB EO# D-550-34 for details.

Year Make Model SubModel Engine Fuel
1999-2003 Ford F-250 Power Stroke Turbo Diesel V8 7.3L Diesel
1999-2003 Ford F-350 Power Stroke Turbo Diesel V8 7.3L Diesel
