Edelbrock Pro-Flo 4 EFI Traditional 4150 #356500 70-91 AMC 304,360,390,401 W/O Tablet

Vendor: Edelbrock

SKU: 356500

$2,079.95
DETAILS The Edelbrock Pro-Flo 4 EFI Kit #356500 W/O Tablet for 1970-1991 AMC 304, 360, 390, 401 CID engines is a fully sequential multi-port injection system designed with a fuel...
Title

DETAILS

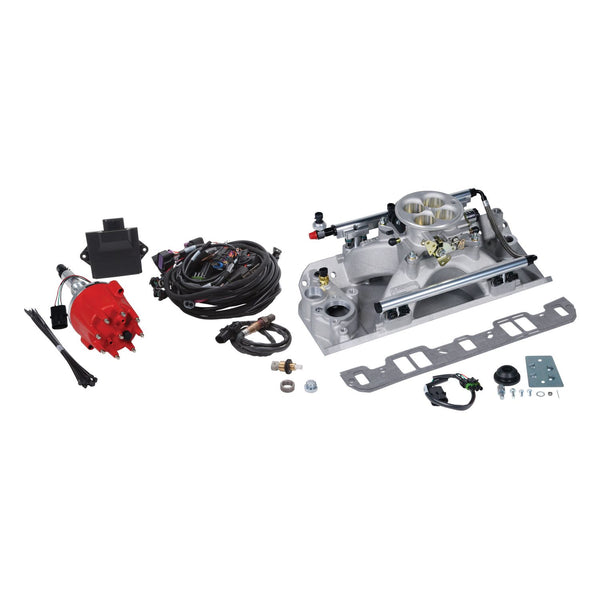

The Edelbrock Pro-Flo 4 EFI Kit #356500 W/O Tablet for 1970-1991 AMC 304, 360, 390, 401 CID engines is a fully sequential multi-port injection system designed with a fuel injector strategically positioned in each runner of the intake manifold to deliver the best fuel atomization and most even distribution to each cylinder. This system features the high-performance Victor Jr.-style single-plane intake manifold that comes preassembled with high-flow injectors, fuel rails and 4150-flange throttle body. All supporting sensors are included along with distributor, wire harnesses, ECU and Android-based tablet with E-Tuner Calibration app pre-installed. The Victor manifold is designed with a larger cross-sectional area in the plenum and larger runners for high-horsepower and/or large cubic-inch applications. This kit uses 35 lb/hr injectors and is rated for 550 horsepower at 58 PSI of fuel pressure. Calibration of the Pro-Flo 4 is a simple process with a Setup Wizard providing guidance through the E-Tuner's initial programming. Once provided with basic information such as type of engine, cubic inches, firing order, and cam profile, the E-Tuner then selects the most appropriate base calibration. Once the base calibration is set, the self-learning E-Tuner takes over to continually maximize the fuel map for your specific engine configuration, even compensating for changes in altitude and weather. The E-Tuner provides more advanced tuning options that allow precise control over cold starts and acceleration while retaining the simplicity that Pro-Flo systems are known for. No laptop tuning is required.



SPECS

Availability Available
Application Application Specific
UPC 00085347890286
Gasket Or Seal Included Yes
Quantity Kit
Wiring Harness Included Yes
System Type Traditional 4150-Style Kit
Distributor Cap Included Yes
Bore Diameter 1.75 in
Availability Note Available to Order
Warranty 24 Months
Fuel Injector Type 35 lb/hr
Maximum Horsepower 500 @ 43 psi/550 @ 58 psi
Idle Air Control Motor Included Yes
Fuel Pressure Port 1/8-27 NPT
Emissions Code



Hazardous Materials Warning WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Installation Notes
  • This Pro-Flo 4 system for 1970-1991 AMC 304, 360, 390, 401 c.i.d. engines requires a high-pressure, EFI-compatible fuel delivery system. Edelbrock fuel delivery kits are available and sold separately for this application. Includes standard oil fill and raised PCV boss and baffle for better oil control. PCV and Baffle included in kit. Visit edelbrock.com to choose the right kit for your installation. Manifolds height for Pro-Flo 4 #356500 is 5.74 inches, Carb Angle 0 degrees.
Finish Satin
