Edelbrock Stage 2 Supercharger Upgrade 2018-21 Ford Mustang 5.0L 4V W/ Tune
Vendor: Edelbrock
SKU: 15883
More info
DETAILS

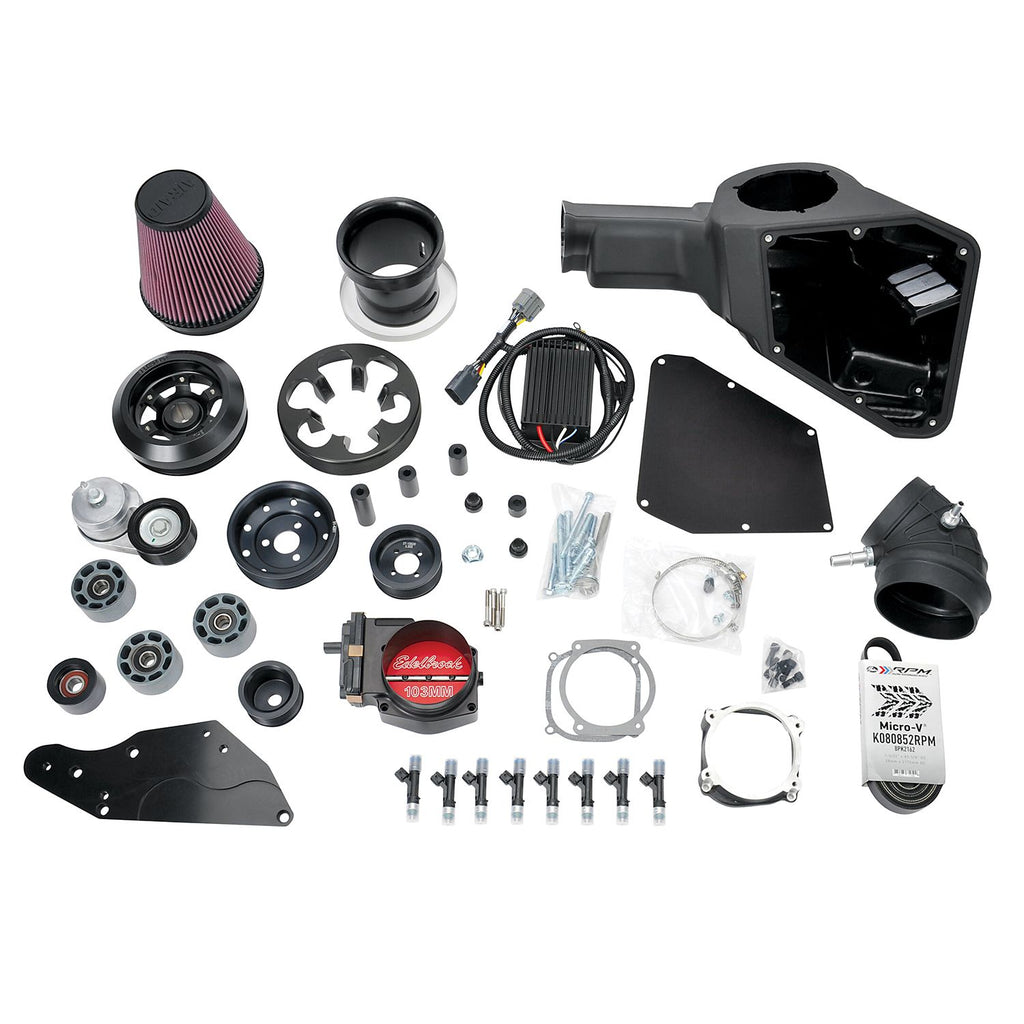

Owners of 2018-2021 Ford Mustangs who have installed an Edelbrock #15832/158320 Stage I Supercharger Kit can now step up to the next level of performance with the Stage II Supercharger System Upgrade Kit #15883. With this Stage II upgrade kit, your vehicle remains emissions-legal in all 50-states while taking full advantage of the improved Gen 3 DI/PI Coyote engine. The Edelbrock Stage II Supercharger Upgrade Kit features all of the vital components required to support the additional horsepower increase that makes this our highest rated horsepower system. Included are a 103mm Throttle Body to replace the Stage I 80mm, a high-flow air intake system, a 113mm Mass Airflow Sensor Kit with injection-molded housing, larger 50 lb/hr direct-port fuel injectors along with a Fuel Pump Voltage Regulator, and an 8-rib belt drive to minimize slippage and maintain consistent boost pressure under full throttle.
SPECS
| Availability | Available |
|---|---|
| Application | Application Specific |
| UPC | 00085347158836 |
| System Type | Stage 2 - Street/Strip System |
| Gasket Or Seal Included | Yes |
| Quantity | Kit |
| Mounting Bracket Included | Yes |
| Pulley Material | Aluminum |
| Pulley Color | Black Anodized |
| Pulley Groove Quantity | 8-Rib |
| Outside Pulley Diameter | 3.5 in |
| CARB Executive Order Number | D-215-122 |
| Maximum Torque | 533RW ft-lb |
| Fuel Injector Type | 50 lb/hr |
| Maximum Horsepower | 686RW |
| Availability Note | Available to Order |
| Warranty | 36 Months |
| Rotor Type | Eaton TVS 2650 |
| Mounting Hardware Included | Yes |
| Calibration | Yes |
| Emissions Code |
|
| Hazardous Materials Warning |
 WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Installation Notes |
|
| Finish | Black |
| Maximum Boost Pressure | 13 PSI |
| Pulley Belt Width | 8-Rib |
| Universal Or Specific Fit | Specific |
