DeWitts: 2005-13 Corvette, with trans & oil cooler, Cut Down Core Dual 11" Spal fan

Vendor: Dewitts

SKU: 4139125B

$1,189.99
C6 CORVETTE (SHORT) All the models below have a shorter core for blower clearance.     DIRECT FIT® C6 RADIATOR FEATURES: Two row core (1.0" wide tubes) Direct Fit Upgrade-No modifications No...
Title

C6 CORVETTE (SHORT)

All the models below have a shorter core for blower clearance.

 DIRECT FIT® C6 RADIATOR FEATURES:

  • Two row core (1.0" wide tubes)
  • Direct Fit Upgrade-No modifications
  • No gaskets or plastic tanks
  • Billet aluminum end tanks with no fabrication seams
  • 7-plate (TOC & EOC) coolers where applicable
  • Factory Quick connect transmission fittings included
  • 100% assembled, brazed, and welded in USA
  • Proven design over 10 years running
  • Lifetime Warranty

APPLICATIONS


1139125M  This model has no internal coolers and fits:

  • Base models with manual transmission. Non-Z51 option

1139125A- This model includes one 7-plate internal oil (TOC) cooler on the passenger side. GM quick connect fittings included. Applications are:

  • All Z06 (Except 2012 w Z07)
  • All C6 with Automatic transmission
  • All dry sump engines

1139125B- This model includes a 7-plate internal oil cooler for both engine oil cooling (EOC) and transmission (TOC) cooling. Fits the following:

  • 2005-2006 Z51
  • 2007-2009 wet sump motors

1139105E-This a non-factory option. It was created  for those wanting to add internal type engine oil cooling. The oil ports are 3/4-16 SAE straight thread o'ring seal. You can use the factory GM oil line assembly (quick connection fittings required) or install the #10AN fittings and use SS hose assemblies.

1139125Z- 2013 Corvette cut down version for models: Z06,, Z51, Grand Sports with engine-mounted oil cooler



    RADIATOR & FAN COMBINATIONS

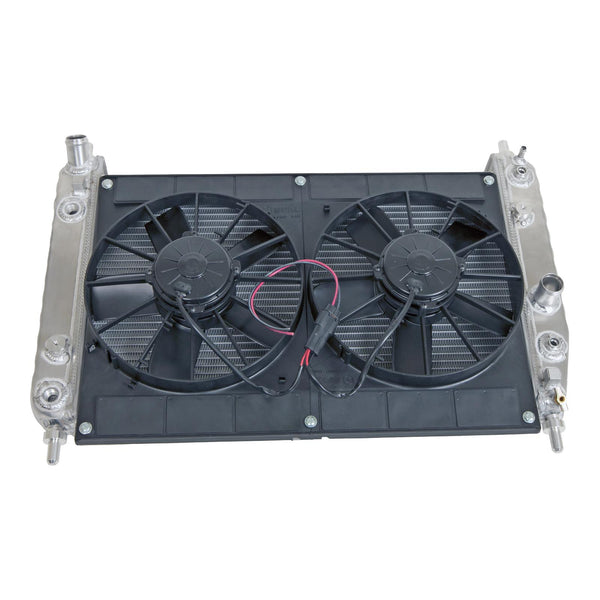

    The best of both worlds! Here we combine the DeWitts Direct Fit radiator with Spals dual 11" (2800 CFM) electric fans. Click HEREfor fan kit only.

    Model: 4139125M
    Model: 4139125A              (Photo
    Model: 4139125B
    Model: 4139125E
    Model: 4139125Z
