Edelbrock Stage 1 Supercharger 2010-15 Camaro SS LS3 Manual Tran w/o Tune
Vendor: Edelbrock
SKU: 15630
More info
DETAILS

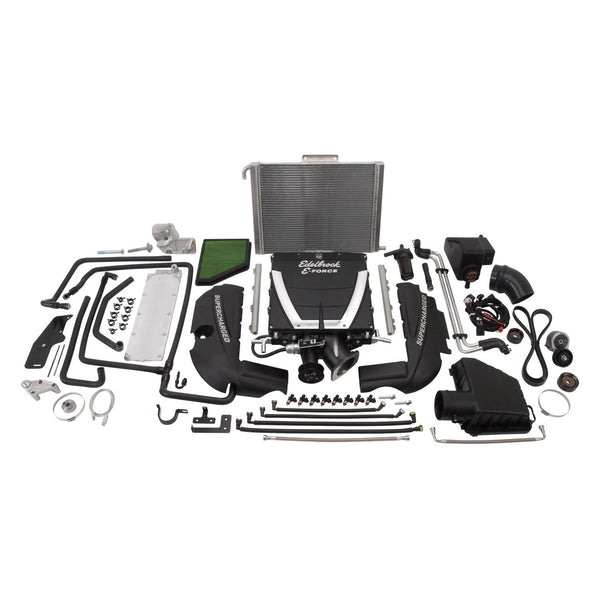

The Edelbrock supercharger Stage 1 Street System part #15630 for 2010-15 Camaro SS with a manual transmission increases the performance of your LS3 engine to 599 horsepower and 547 ft-lbs of torque at the crank when used with Edelbrock tune (kit supplied without a programmer). The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. HANDHELD PROGRAMMER NOT INCLUDED. Supercharger systems sold without tuners are only emissions legal when used with the correct Edelbrock program.
SPECS
Availability | Available |
---|---|
Application | Application Specific |
UPC | 00085347156306 |
System Type | Stage 1 - Street System |
Vehicle Model | Camaro |
Housing Material | Cast Aluminum |
Gasket Or Seal Included | Yes |
Quantity | Kit |
Oil Capacity | 150 mL |
Center Housing Cooling Type | Intercooler |
Internal Step Up | Yes |
Mounting Bracket Included | Yes |
Outside Pulley Diameter | 3.5 in |
CARB Executive Order Number | D-215-89 |
Transmission Type | Manual |
Fuel Injector Type | 52 lb/hr |
Availability Note | Available to Order |
Warranty | 36 Months |
Emissions Code |
|
Hazardous Materials Warning | WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
Installation Notes |
|
Finish | Black Powder Coated |
Maximum Boost Pressure | 9 |
Pulley Belt Width | 6-Rib |
Universal Or Specific Fit | Specific |
