DIAMOND/BTR PISTON SET - GEN V LT4 - 4.065" BORE - FOR STOCK CRANK AND RODS - 10.7:1 SCR - 801BTR
Vendor: BTR
SKU: 801BTR
More info
DIAMOND/BTR PISTON SET - GEN V LT4 - 4.065" BORE - FOR STOCK CRANK AND RODS - 10.7:1 SCR - 801BTR
• 3D milling on piston crowns for ready to install finish • Piston crowns designed to work with OEM direct injection • Inboard forging design for maximum strength • Valve pockets designed to work with most aftermarket cylinder heads • Offset pins for quiet operation • Moly skirt coating for friction loss and skirt wear protection • Top ring down dimension: .300” • Ratios figured for .053” head gasket • Premium 1.2mm/1.2mm/3.0mm ring package included • Premium 8620 .180W wrist pins chamfered for roundwire locks included • Valve pocket depth: 0.200” intake and .200” exhaust • 2618 material for high horsepower, nitrous, and forced induction applications
| BTR SKU | 801BTR |
|---|---|
| Brand | Diamond Pistons |
| Part Type | Pistons |
| Piston Style | Dome |
| Piston Volume | -2.8cc |
| Piston Bore Size | 4.065" |
| Piston Stroke | 3.622" |
| Piston Pin Size | .945" |
| Rod Length | 6.098" |
| Engine Type | Gen V LT |

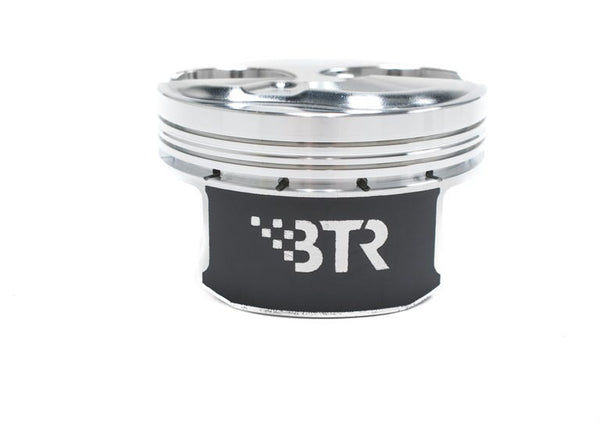

BE ADVISED: IMAGE MAY DIFFER FROM ACTUAL PRODUCT.
